Conventional rooftop solar is an addition to a building. Building-Integrated Photovoltaics is the building. BIPV replaces standard roofing membranes, facade cladding panels, and glazing units with photovoltaic elements that perform both their architectural function and generate electricity simultaneously. The engineering discipline is fundamentally different from rack-mounted PV: module selection must satisfy structural loading, fire classification, water tightness, and aesthetic requirements in addition to electrical performance. Apex Grid operates at this intersection of building physics and power systems engineering — a discipline that requires both registered building practitioner credentials and grid-connection expertise in the same project team.
BIPV System Types and Technical Specifications

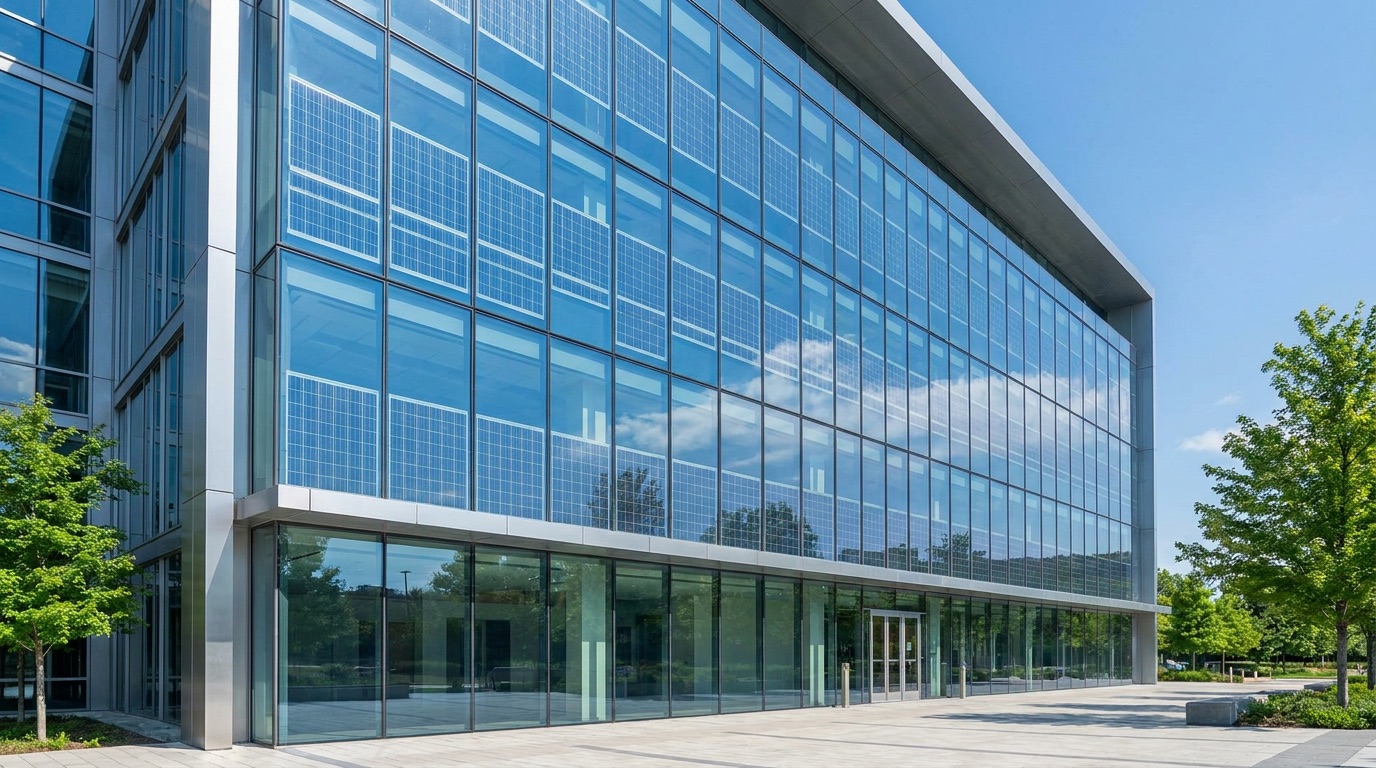

We design and commission three primary BIPV configurations: integrated roofing systems using mono-PERC or heterojunction (HJT) solar laminates bonded to standing-seam metal or membrane substrates; facade-integrated systems using frameless glass-glass modules as rainscreen cladding panels; and semi-transparent building-integrated glazing for curtain wall, skylight, and atrium applications where controlled solar heat gain and daylight transmission are design parameters alongside electrical output. Each system type is specified against your building's structural envelope, waterproofing requirements, and planning jurisdiction. Module efficiency, temperature coefficient, and degradation rate are matched to the thermal environment of the specific envelope element — a west-facing metal facade operates at significantly higher cell temperatures than a north-facing roof-integrated array, and the electrical specification must account for that difference.
Partial shading on a conventional rooftop array can be mitigated by string segmentation. On a BIPV facade with irregular shadowing from adjacent structures, window reveals, and architectural features, a more granular power electronics approach is required. Apex Grid specifies module-level power electronics — DC optimisers or microinverters — for all facade-integrated and irregular-geometry BIPV installations, ensuring each module operates at its maximum power point independently of its neighbours. This protects generation output across the full diurnal shading cycle without requiring the shading modelling precision that a string-based design demands.
- Structural analysis and dead load assessment for BIPV module integration into existing and new-build envelope elements
- Shadow analysis and inter-row shading modelling using PVsyst and site-specific irradiance datasets
- DC string architecture design with microinverter or DC optimiser topology to mitigate partial shading on non-uniform facades
- IEC 61730 and IEC 61215 module compliance verification and factory acceptance testing coordination
- AS 4600 and NCC Section J integration — BIPV systems contribute to both energy generation and thermal envelope performance modelling
- Weatherproofing and flashing detail engineering with hydraulic testing to AS 4654 for roof-integrated systems
- Electrical safety and arc-fault protection coordination compliant with AS/NZS 5033 and NCC Volume One
Financial Case: Dual Value in Every Square Metre
The financial case for BIPV is built on cost displacement, not just energy generation. When BIPV replaces a conventional building material — a facade cladding panel, a roofing sheet, or a glazing unit — the capital cost of that conventional material is offset against the BIPV installed cost. In commercial and institutional new-build projects, this displacement can reduce the net incremental cost of BIPV to 15–30% above conventional material cost, while delivering 25–40 years of electricity generation. On energy-intensive sites with high self-consumption ratios, payback periods of 8–12 years are achievable without subsidy, while the building's NCC Section J energy rating and NABERS score improve concurrently. These are not marketing estimates — they are engineering models derived from your building's actual envelope geometry, orientation, and operational load data.
For existing building refurbishments, BIPV can be specified as part of a planned facade or roofing replacement cycle, shifting what would otherwise be a pure cost replacement into a revenue-generating capital investment. Apex Grid's advisory team models the incremental cost, generation profile, tariff offset, and LGC revenue to produce a life-cycle cost comparison against conventional material alternatives — giving your asset manager a quantified basis for the investment decision that stands up to board-level scrutiny and capital approvals processes.
Engineering Integration with Base Building Systems
BIPV does not operate in isolation. Apex Grid engineers the full integration between the BIPV generation array, the building's main switchboard, any battery storage system, and the EMS dispatch layer. We coordinate with the base building mechanical, electrical, and hydraulic (MEH) engineering team to ensure inverter locations, cable runs, and protection equipment are integrated into the building services design from concept stage rather than retrofitted at practical completion. Our commissioning team completes AS/NZS 3000 inspections, inverter performance verification, and export limiting configuration against your network connection agreement before the building certificate of occupancy is issued. BIPV is an infrastructure commitment that lasts the life of the building — it demands the same rigour as any other primary structural or services system.
