Structured cabling is the physical foundation of every modern commercial and industrial network. Ethernet speeds advance — 1GbE gave way to 10GbE, and 25GbE is emerging at the access layer — but the cable plant must support those speeds reliably for a fifteen-to-twenty-year lifespan if the investment is to pay back. Nexus Grid Electrical installs cabling systems that meet current standards and anticipate the performance demands of the next technology generation, using ACMA-registered cablers, calibrated channel test equipment, and documented certification against AS/NZS 3080.
Australian Standards and ACMA Registration
In Australia, telecommunications cabling on customer premises is regulated under the Telecommunications Act 1997 and the Telecommunications (Cabling Provider Rules) 2000 administered by the Australian Communications and Media Authority (ACMA). Any person who installs, alters, or maintains customer cabling — including structured data cabling inside commercial premises — must be a registered cabler with ACMA. Nexus Grid employs only ACMA-registered cablers for all data cabling work, and all telecommunications cabling on customer premises is installed and certified in accordance with the Cabling Provider Rules and the industry standard AS/NZS 3080.
AS/NZS 3080 (Telecommunications installations — Generic cabling for commercial premises) defines the structured cabling architecture, cable categories, component performance classes, and channel testing requirements applicable to Australian commercial buildings. It aligns closely with ISO/IEC 11801 and TIA-568 but incorporates Australian-specific requirements for conduit fill, outlet labelling, and documentation. AS/NZS 3084 governs backbone cabling between buildings and between telecommunications rooms within a building.
Cat6A Channel Design and 10GBase-T Support
Category 6A augmented twisted-pair cabling supports 10GBase-T Ethernet at channel lengths up to 100 metres, operating at frequencies up to 500MHz. The key performance challenge for Cat6A is alien crosstalk (AXT) — electromagnetic coupling between adjacent cables in a bundle — which is more significant at 10GbE than at lower speeds. Nexus Grid engineers specify augmented Cat6A cable with enhanced AXT performance (headroom above the Class EA channel requirement) and route cables in non-bundled configurations where cable density is high. Where tray fill and bundling is unavoidable, we apply the AXT de-rating provisions in AS/NZS 3080 and increase cable-to-cable spacing accordingly.
- Cat6A UTP or F/UTP cable selected based on alien crosstalk environment and tray density
- Channel length verified at ≤100m permanent link per AS/NZS 3080 architecture
- Every installed channel certified with a Fluke DSX-8000 or equivalent Level IV tester to Class EA
- Test results — insertion loss, NEXT, ANEXT, PSACR-F — stored digitally and provided at handover
- Patch panels and jacks from a single-manufacturer system to preserve channel performance warranty
- Cat6 channels certified to Class E (250MHz) for 1GbE where budget or density constraints apply
Fibre Optic Backbone Infrastructure
Multimode fibre (OM3 or OM4) is the standard backbone medium for intra-building connections between telecommunications rooms, supporting 10GBase-SR at 300m (OM3) or 550m (OM4) over laser-optimised 50/125µm fibre. Where inter-building distances exceed multimode limits, or where future 40GbE or 100GbE backbone capacity is anticipated, Nexus Grid specifies OS2 single-mode fibre — capable of 10km at 10GbE and effectively future-proof for wavelength-division multiplexing. All fibre terminations are fusion-spliced where possible, targeting insertion loss below 0.1dB per splice and channel optical loss within the budget defined in AS/NZS 3080.
Fibre distribution frames (FDFs) and patch panels are rack-mounted in telecommunications rooms built to AS/NZS 3084 specifications — including minimum clearances, cable management capacity, and environmental controls. Nexus Grid engineers include cable management rings, velcro bundling (never cable ties on fibre), and service loops at each termination point, ensuring the plant is maintainable and extendable without disturbing adjacent circuits.

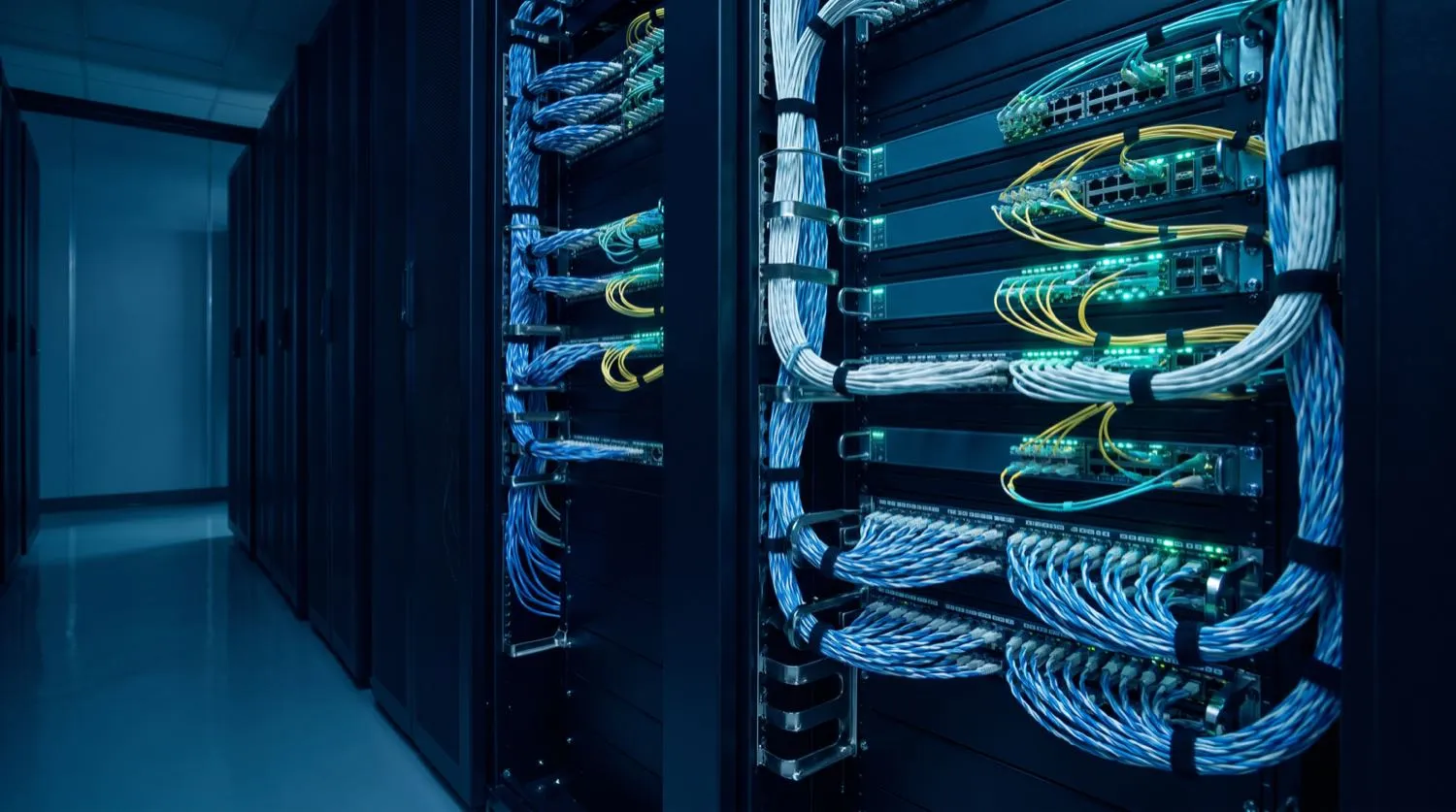

Rack Infrastructure and Telecommunications Room Design
A structured cabling system is only as reliable as the rack infrastructure that terminates it. Nexus Grid designs telecommunications rooms to AS/NZS 3084, specifying 19-inch open-frame or enclosed racks sized for current and projected active equipment, with 1.5× future capacity headroom. Power distribution within racks is designed for measured loads — an active network rack carrying core switches, PoE-capable access switches, and patch panels can draw 3–6kW continuously, requiring dedicated circuit supply from the UPS distribution board, not shared building power circuits.
