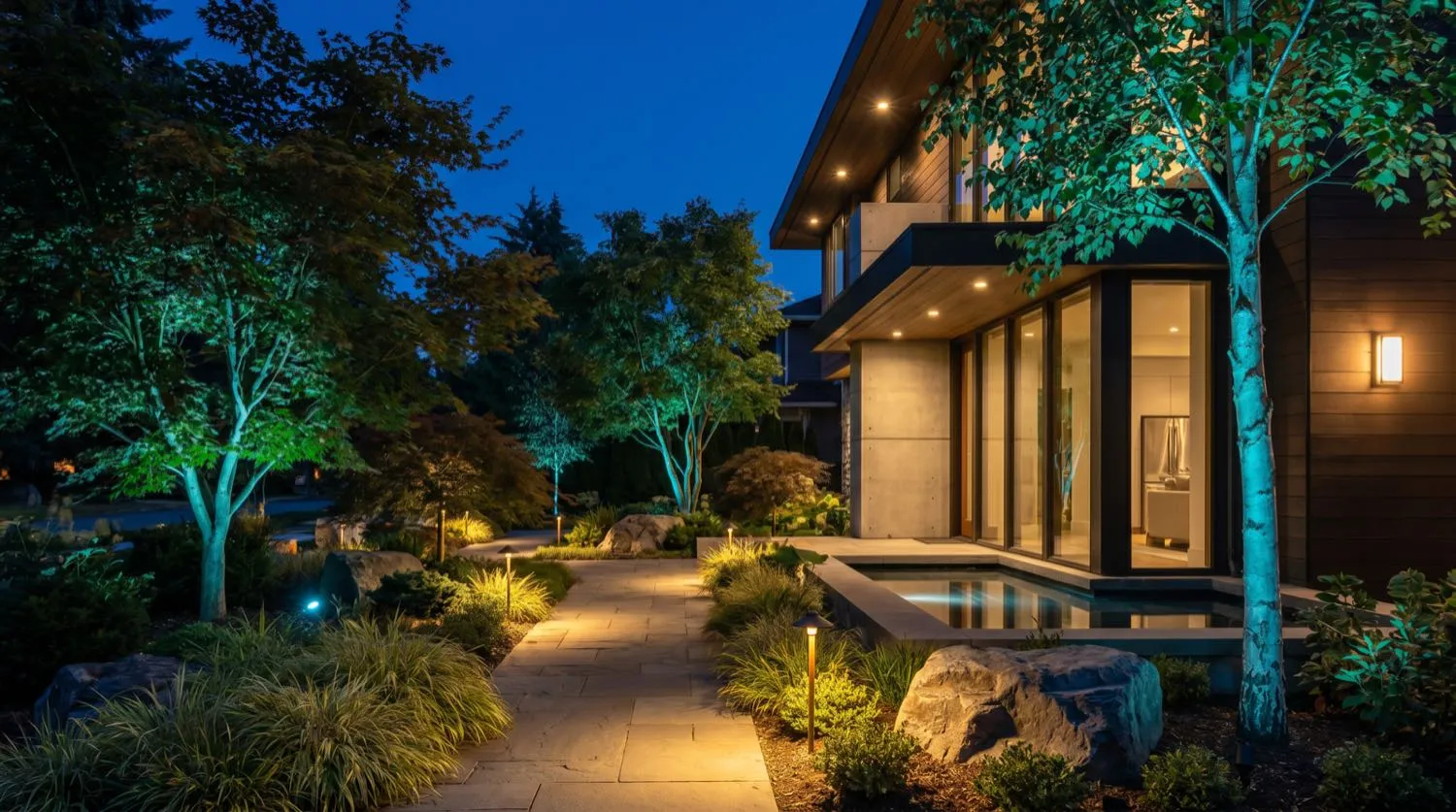

Outdoor and landscape lighting sits at the intersection of electrical safety engineering and environmental durability. Unlike indoor wiring, outdoor installations must withstand sustained moisture, ground movement, UV radiation, and the mechanical forces of maintenance equipment and soil expansion. AS/NZS 3000:2018 contains specific provisions for outdoor wiring — cable types, burial depths, IP ratings for enclosures, and mandatory RCD protection — all of which Nexus Grid applies systematically to every landscape lighting project.
IP Rating Selection and Fixture Specification
The IEC 60529 Ingress Protection (IP) rating system defines the resistance of electrical enclosures to solid particle and liquid ingress, using a two-digit code. For landscape lighting applications, the required IP rating is determined by the installation environment and fixture location. Path luminaires and bollard lights in areas subject to rainfall but not immersion require a minimum IP65 rating (dust-tight, protected against water jets from any direction). In-ground uplights that may experience temporary submersion require IP67 (protected against immersion to 1 metre for 30 minutes) or IP68 (continuous immersion beyond 1 metre, as specified by the manufacturer).
Nexus Grid engineers specify fixtures by reviewing manufacturer IP test certificates — not simply product descriptions — and cross-referencing the fixture IP rating against the worst-case environmental conditions of the installation zone. Pool surrounds, drainage paths, and irrigated garden beds are classed as higher-ingress-risk zones and attract IP67 or IP68 specification.
Extra-Low-Voltage System Design
Extra-low-voltage (ELV) landscape lighting systems operating at 12V AC or 12V DC offer significant safety advantages in outdoor environments. Under AS/NZS 3000:2018 definitions, ELV systems operating below 50V AC or 120V DC do not present the same electrocution risk as mains-voltage installations in wet or buried environments. ELV systems are supplied from Class II safety-rated toroidal or electronic transformers mounted in weatherproof enclosures, and the 12V secondary wiring requires no trench depth requirement under the Wiring Rules (though physical protection from damage is still required).
- Transformer secondary current calculated from total fixture wattage plus 20% design margin
- Maximum voltage drop ≤10% over ELV cable run — calculated using conductor resistance at full load current
- Minimum 300mm burial depth for direct-burial cables with underground warning tape at 150mm above cable
- UV-stabilised XLPE or PVC-sheathed cables for all exposed outdoor cable runs
- Weatherproof IP65-rated junction boxes at all underground-to-above-ground cable transitions
- RCD protection at 30mA on all outdoor mains-voltage circuits per AS/NZS 3000:2018 Clause 2.6
Transformer Sizing and Cable Runs
ELV landscape transformers must be sized not only for total wattage but for distribution across cable runs. Voltage drop in low-voltage cabling is a significant engineering consideration: a 12V system loses proportionally more voltage per unit resistance than a 230V system. On a 12V, 100W circuit, a cable resistance of just 0.24 ohms produces a 2V drop — a 16.7% reduction that causes LEDs to dim noticeably. Nexus Grid engineers calculate conductor cross-section for each cable run using maximum load current and target voltage drop limits, typically specifying 2.5mm² or 4mm² conductors for runs exceeding 20 metres.
Multi-tap transformers allow voltage adjustment at the secondary (typically 12V, 13V, 14V taps) to compensate for cable resistance on longer runs. Nexus Grid documents the transformer tap selection and actual measured output voltage for each zone at commissioning, providing a reference for future maintenance.
Outdoor Mains-Voltage Installations and RCD Protection
Where mains-voltage luminaires, power points, or equipment such as water feature pumps are installed outdoors, AS/NZS 3000:2018 Clause 2.6 mandates 30mA RCD protection on all circuits. Underground mains-voltage cables must use armoured or heavy-duty PVC-sheathed cable and be buried at a minimum of 500mm below finished surface level in trafficable areas (300mm minimum in non-trafficable areas), with an underground warning tape installed at 150mm above the cable. Nexus Grid details all underground mains cable routes on an as-installed drawing provided to the client for future ground-breaking reference.
All outdoor electrical installations are tested to AS/NZS 3017 at completion — including insulation resistance between active and earth conductors of buried cables, RCD trip time and current verification, and earth continuity through all metallic fixture housings. A Certificate of Inspection is issued to the electrical safety regulator for all mains-voltage outdoor work.
